Copper 2 Hole Cable Lugs
- Our products
- Cable Lugs
- CCopper 2 Hole Cable Lugs

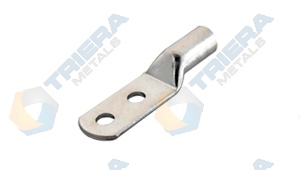

Copper 2 Hole Cable Lugs are made of electrolytic copper. Cable lugs come in bare or tin plated finish. Heavy duty copper tubes are pressed, forged and machined to achieve the desired size and shape. Four Hole Cable Lugs come with four stud holes and are used to connect cables to transformer terminals.
Cable Lug Dimensions – mm
| Cable Size (mm²) | Stud Hole Size E | A | C | B | D | G | L |
|---|---|---|---|---|---|---|---|
| 16 | 10.5 | 5.4 | 7.1 | 16 | 14.5 | 44.5 | 100 |
| 25 | 10.5 | 6.8 | 8.8 | 16 | 15 | 44.5 | 100 |
| 35 | 10.5 | 8.2 | 10.6 | 16 | 16.5 | 44.5 | 100 |
| 50 | 10.5 | 9.5 | 12.4 | 25 | 17 | 44.5 | 109 |
| 50 | 13.0 | 9.5 | 12.4 | 25 | 17 | 44.5 | 109 |
| 70 | 10.5 | 11.2 | 14.7 | 30 | 21 | 44.5 | 114 |
| 70 | 13.0 | 11.2 | 14.7 | 30 | 21 | 44.5 | 114 |
| 95 | 10.5 | 13.5 | 17.4 | 30 | 25 | 44.5 | 116 |
| 95 | 13.0 | 13.5 | 17.4 | 30 | 25 | 44.5 | 116 |
| 120 | 10.5 | 15.0 | 19.4 | 35 | 27.5 | 44.5 | 122 |
| 120 | 13.0 | 15.0 | 19.4 | 35 | 27.5 | 44.5 | 122 |
| 150 | 10.5 | 16.5 | 21.2 | 40 | 30 | 44.5 | 126 |
| 150 | 13.0 | 16.5 | 21.2 | 40 | 30 | 44.5 | 126 |
| 185 | 10.5 | 18.5 | 23.5 | 42 | 33.5 | 44.5 | 132 |
| 185 | 13.0 | 18.5 | 23.5 | 42 | 33.5 | 44.5 | 132 |
| 240 | 10.5 | 21.0 | 26.5 | 50 | 38.5 | 44.5 | 143 |
| 240 | 13.0 | 21.0 | 26.5 | 50 | 38.5 | 44.5 | 143 |
| 300 | 13.0 | 23.5 | 30.0 | 55 | 43 | 44.5 | 144 |
| 400 | 13.0 | 28.5 | 36.5 | 60 | 52.5 | 44.5 | 149 |
| 500 | 13.0 | 30.0 | 39.0 | 65 | 56 | 44.5 | 160 |
| 630 | 17.0 | 35.0 | 45.0 | 75 | 60 | 44.5 | 160 |
