A1/A2 Type Single Compression Cable Gland

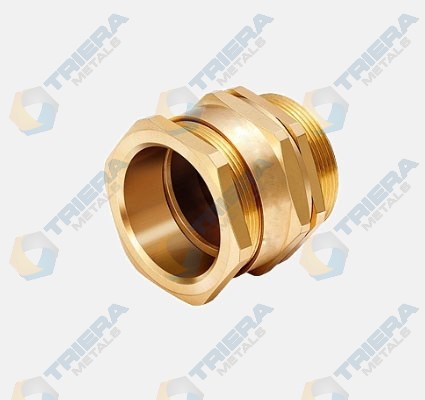

We are India’s leading manufacturer, supplier, and exporter of A1/A2 Type Cable Glands. ‘A’ type glands more commonly known as ‘stuffing’ glands. There are two types of ‘A’ gland. A1 and A2, A1 is retained on the cable whilst the ‘A2’ gland seals and retains on the cable.
Technical Details
| Technical Details | Specifications |
|---|---|
| Cable Types | Unarmoured |
| Application | For indoor and outdoor use with all types of unarmoured cable where it is essential to provide IP66 or IP68 protection on the outer sheath of cable for circular, unarmoured plastic or rubber sheathed cables. |
| Gland Material | Brass (CuZn39Pb3), Stainless Steel (304 or 316L), Aluminium (6082) |
| Option Thread | Metric, NPT, BSP & PG |
| IP Rating | IP66 & IP68 |
| Seal Type | Displacement type |
| Operating Temperature | Standard seals (Nitrile): -20°C to +80°C. On request (silicone): -60°C to +180°C |
| Finish | Natural Brass or Nickel Plated or Electroless Nickel Plated |
| Accessories | PVC/LSF Shroud, Lock Nut, Earth Tag, Serrated Washer, Adaptor / Reducer |

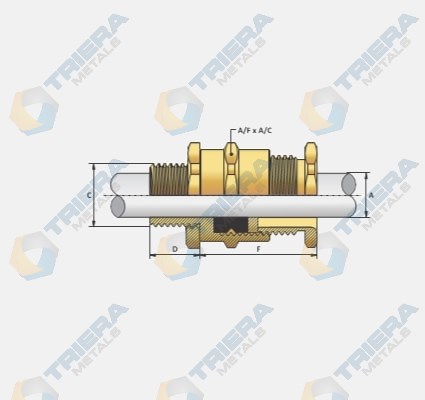

A1/A2 TYPE SINGLE COMPRESSION
CABLE GLANDTriera
| CODE | GLAND SIZE | THREAD SIZE ‘C’ | THREAD LENGTH (D) | ACROSS FLAT (A/F) | ACROSS CORNER (A/C) | CABLE DIAMETER “A” | ||
|---|---|---|---|---|---|---|---|---|
| METRIC (ISO) | NPT | MIN | MAX | |||||
| TRIERA-A1A2-20S16 | 20S16 | M20 | 3/8″ | 10 | 24.5 | 27 | 3.2 | 8.7 |
| TRIERA-A1A2-20S | 20S | M20 | 1/2” | 10 | 24.5 | 27 | 6.2 | 11.7 |
| TRIERA-A1A2-20L | 20L | M20 | 1/2” | 10 | 27 | 30 | 6.5 | 14 |
| TRIERA-A1A2-25 | 25 | M25 | 3/4” | 10 | 36 | 40 | 11.1 | 20 |
| TRIERA-A1A2-32 | 32 | M32 | 1″ | 10 | 41 | 45 | 17 | 26.3 |
| TRIERA-A1A2-40 | 40 | M40 | 1.1/4” | 15 | 50 | 55 | 23.5 | 32.2 |
| TRIERA-A1A2-50S | 50S | M50 | 1.1/2′ | 15 | 55 | 60 | 31 | 38.2 |
| TRIERA-A1A2-50L | 50L | M50 | 2” | 15 | 60 | 66 | 35.6 | 44 |
| TRIERA-A1A2-63S | 63S | M63 | 2” | 15 | 70 | 77 | 41.5 | 49.9 |
| TRIERA-A1A2-63L | 63L | M63 | 2.1/2” | 15 | 75 | 82 | 47.3 | 55.9 |
| TRIERA-A1A2-75S | 75S | M75 | 2.1/2” | 15 | 84 | 92 | 54 | 61.9 |
| TRIERA-A1A2-75L | 75L | M75 | – | 15 | 84 | 92 | 61.2 | 67.9 |
| TRIERA-A1A2-90 | 90 | M90 | 3” | 20 | 108 | 118 | 66.7 | 79.9 |
| TRIERA-A1A2100 | 100 | M100 | 3.1/2″ | 20 | 115 | 125 | 76 | 91 |
